Manufacturer of precision tooling parts, machined parts.
- CNC turning and milling services
- Precision grinding services
Manufacturer of precision tooling parts, machined parts.
- CNC turning and milling services
- Precision grinding services
 |
| Place of Origin: | China |
| Brand Name: | OEM / Dayton, Moeller or Misumi standards |
| Certification: | ISO9001:2015 |
| Model Number: | Custom |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD1-100 |
| Packaging Details: | EPA + Ziplock PP bag +Exporting carton |
| Delivery Time: | 7-15 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000pcs per month |
| Material: | A2, D2, PS, M2, M4, PS, S7, H13, 17-4, ASP 23, Carbide | Diameter: | 0.2 To 220 Mm |
|---|---|---|---|
| Length: | 1000mm | Roughness: | Ra0.025 |
| Tolerance: | +/-0.001mm | Surface Finish: | Titanium Plating, CVD,PVD,TD,Nitridation, TiCN |
| Treatment: | Laser Etched, Ground, Polished | Standard: | Dayton, Moeller, Pedrotti,Misumi,Kern,Steinel,MDL Etc |

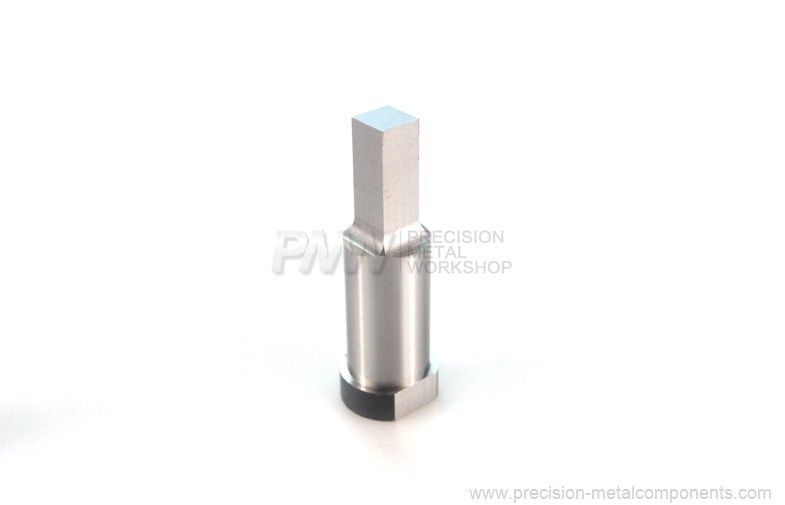

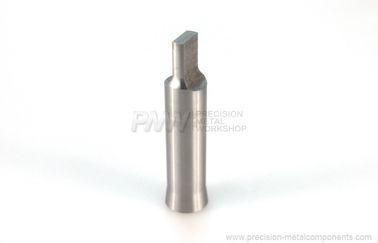

Precision Punches and dies, ISO 8020 APR regular square punches A2,M2,PS material optional
1,Quick Detail:
ISO 8020 APR regular punches with squre cutting edge, build upon customer drawing, applies in die stamping tooling.
2,Description:
Special square punches with key flat, regular punches, ISO 8020 standard or non-standard punches, non-ejector punches, die inserts, die buttons, Ejector Pins, Core Pins etc. We provide precision tooling components with premium material and accurate precision.
3,Applications:
Our tooling fabrication ability involves precision components of sheet Metal and non-metal stamping dies, Injection Molds, Medical tooling, Dental tooling.
4,Machine Specifications:
Wire EDM - 330*240*230mm
Sinker EDM - 450*300*320mm
CNC Lathe: Dia 1.0-320mm
CNC machininging center: 1100*600*500mm
Surface Grinding - 800*600*200mm
O.D. Grinding -Dia 0.2~200*600mm
I.D. Grinding –Dia 0.4~200*600mm
| Product |
Special square punches with key flat Tapered head punches Special oval punches Regular punches Custom Punches non-ejector punches Carbide punches Dowel Punches |
| Capabilities |
Special tooling with diameters ranging from 0.2 to 220 mm, lengths smaller than 1000mm, with tolerances down to +/-0.001mm, coaxiality 0.003 mm, circularity 0.0015 mm, surface finishes as best as Ra0.025.
|
| Material: | 1.2343,A2, M2 ,DC53, ASP23, ASP60, 4Cr5MoVSi,SKD61,H11,BH11,SKD11,1.7131, Carbide |
| Lead time: | 8-15 days |
| Processing | CNC lathe /CNC milling / Wire EDM /Sinker EDM machining / Grinding / Mirror Polishing / Laser marking |
| Fabrication equipments: |
CNC machining center, Wire EDM, laser etching device etc |
| Secondary Operations: | Laser etching, PVD coating |
| Surface treatment: | Titanium plating,TiCN, TiN, TIALCN,ALCRONA PRO, AlCrN |
| Inspection instruments: | CMM, Projector, Caliper, Surface gauge , height gauge , screw gauge |
| Package: |
Export Carton, Wooden case, Pallet Plastic trays; or customized package |
| Payment Terms | T/T , Paypal |
| Country of Origin | China |
| Main Export Markets | North America, Europe, Asia etc |
5,Feature Advantage:
6,Competitive Advantage:
Q: If you make poor quality goods, will you refund?
A: We have very strict QC process, and each dimension and feature were measured honestly with QC signatures. Duplicated QC report is made, 1 send with delivery, and 1 kept by us. If there is any customer complaint, we can trace. If it is our issue, we will take our responsibility: refund or remake the parts.
Monthly capacity: 10000~30000pcs/month
Manufacturing facilities-Wire cut EDM, CNC lathe, CNC machining center, Sinker EDM:
Grinding facilities (including flat profile grinding and OD/ID cylinder grinding):
Quality inspection (CMM, Digital height gauge, projector, hardness meter):
How to order:
1.Send us CAD drawing or standard code.
2.Quotation will be offered within 1-2 workdays
3.Get agreement with price and terms,sign PO or Contract
4.Make payment and production starts.
5.Samples are available but maybe charged,depending on value and order quantity.
Tags: Punch and die, oval punches, Custom Punches, Precision punches and dies, Special Punches, Ejector punches, regular punches.
