Manufacturer of precision tooling parts, machined parts.
- CNC turning and milling services
- Precision grinding services
Manufacturer of precision tooling parts, machined parts.
- CNC turning and milling services
- Precision grinding services
 |
| Place of Origin: | China |
| Brand Name: | OEM / Misumi standard |
| Certification: | ISO9001:2015 |
| Model Number: | Custom |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD1-100 |
| Packaging Details: | EPA + PP bag +Exporting carton |
| Delivery Time: | 7-15 workdays |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000pcs per month |
| Material: | Stainless Steel, Steel / A2, D2, M2, M4, PS, S7, H13, 17-4, ASP 23, Carbide | Diameter: | 0.2 To 220 Mm |
|---|---|---|---|
| Length: | 1000mm | Roughness: | Ra0.025 |
| Tolerance: | +/-0.001mm | Surface Finish: | Titanium Plating, CVD,PVD,TD,Nitridation, TiCN |
| Treatment: | Laser Etched, Ground, Polished | Standard: | Dayton, Moeller, Pedrotti,Misumi,Kern,Steinel,MDL Etc |

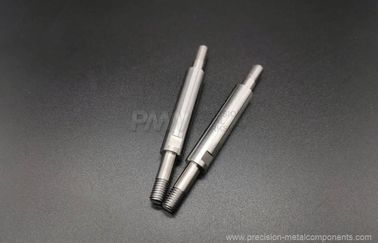

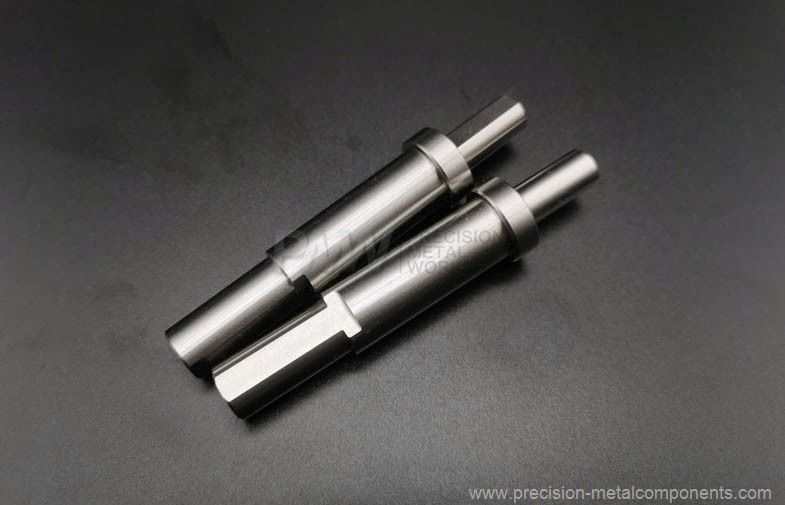

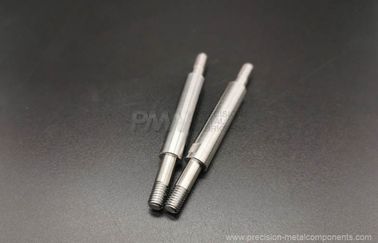

Precision automation components - Shaft pins 1.2842, SUJ2, SUS440C for machinery
1,Quick Detail:
Precision automation components - Shaft pins. Application: automation industry.
2,Description:
Precision automation components - Shaft pins of steel or stainless steel ( 1.2842/ SUJ2 / SUS440C )options, built to Misumi standard or custom made. Large quantity discount available. MOQ1pcs.
3,Applications:
For the automation industries, precision and material duability is important. PMW offers precision tooling with premium material and accurate precision, stable performance reduce the risk of accident and production halt.
4,FacilitiesSpecifications:
Wire EDM - 330*240*230mm
Sinker EDM -450*300*320mm
CNC machininging center: 1100*600*500mm
CNC Lathe: Dia 1.0-320mm
O.D. Grinding -Dia 0.2~200*600mm
I.D. Grinding –Dia 0.4~200*600mm
Surface Grinding - 800*600*200mm
| Product |
Special or standard automation components: Shaft pins Punches and dies Locating pins Guides |
| Capabilities |
Custom post and bushings with diameters ranging from 0.2 to 220 mm, lengths up to 1000mm, with tolerances down to +/-0.001mm, coaxiality 0.003 mm, circularity 0.0015 mm, surface finishes as best as Ra0.025.
|
| Material: | SUJ2, SUS440C, 1.2343,4Cr5MoVSi,SKD61,H11,BH11,SKD11,1.7131, 17-4, Stainless steel 303, YK30+graphite |
| Lead time: | 5-15 days |
| Processing | Wire EDM services /Sinker EDM machining / CNC milling /Surface Grinding / ID grinding / OD grinding / Cylinder grinding / Mirror Polishing / Laser marking |
| Fabrication equipments: |
CNC milling centers, Wire cutting machines, laser etching device etc |
| Secondary Operations: | Laser etching |
| Surface treatment: | TD,TiCN,TIN etc. |
| Inspection instruments: | Micrometer, CMM, Projector, Caliper, Surface gauge , height gauge , screw gauge |
| Package: |
Export Carton, Wooden case, Pallet Plastic trays; or customized package |
| Payment Terms | T/T , Paypal |
| Country of Origin | China |
| Main Export Markets | North America, Europe, Asia etc |
5,Feature Advantage:
Special shaft pins or other pins according to custom drawing, MOQ 1pc.
6,Competitive Advantage:
Q: If you make poor quality goods, will you refund?
A: We have very strict QC process, and each dimension and feature were measured honestly with QC signatures. Duplicated QC report is made, 1 send with delivery, and 1 kept by us. If there is any customer complaint, we can trace. If it is our issue, we will take our responsibility: refund or remake the parts.
Monthly capacity: 3000~100000pcs/month
How to order:
1.Send us drawing or standard code & size
2.Quotation will be offered within 2 workdays
3.Get agreement with price and terms,sign PO or Contract
4.Make payment and production starts.
5.Samples are available but maybe charged,depending on value and order quantity.
Tags: precision tooling, Custom pins,Pilot pins,Die button,Bushings,Dowel pins,Punches and dies,Locating pins
