POM CNC Machined Plastic Parts In Black CNC Plastic Parts Processed By CNC Milling Centers

Product Details:

Place of Origin:	China
Brand Name:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Quote to print
Packaging Details:	EPA + PP bag +carton, or blister + carton
Delivery Time:	7-15 working days
Payment Terms:	T/T, Paypal
Supply Ability:	1000000pcs

Contact Now

Detailed Product Description

Material:	Derlin, POM, ABS, Nylon, PC Etc	Operations:	Turning, Milling, Tapping
Surface Finish:	Power Coating, Electroplating	Tolerance:	+/-0.002mm, 0.01-0.05mm Or Base On Your Drawings, + - 0.05 Mm, 0.01mm, ±0.005
Size Limit:	<1M

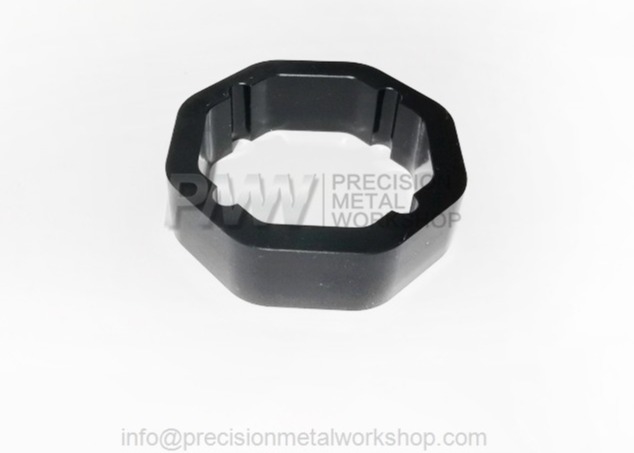

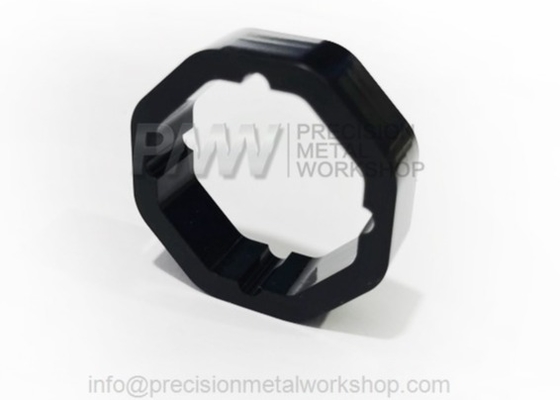

POM CNC Machined Plastic Parts In Black CNC Plastic Parts Processed By CNC Milling Centers

POM Delrin parts processed by CNC machining. We've finished it perfectly with nice surface and dimensions within tolerance!

Precision Metal Workshop is a Chinese manufacturer of CNC machined parts, send us your drawings, or samples, we will offer you engineering drawing or prototypes, final components with surface finish. Our services are applying to industries:

Marine
Fluid control
Energy & Power Generation
Machine Tools
Construction
Telecommunications
Bicycle Components

We produces a wide range of custom precision components.

Adapters

Bushings

Caps
Sleeves

Knobs

Levers
Nozzles

Probes

Clamps

Dowels
Elbows
Washers
Pins
Fasteners (screws, bolts, tie rods, nuts)
Fittings
Couplings
Tees
Flanges
Brackets
Plugs
Rings
Other Custom Components

CNC Milling

CNC milling process produces custom prototypes and end-use production parts in as fast as 4 days. We use milling processes to manufacture parts from more than 30 engineering-grade plastics and metals. With machined production parts, you can also get more competitive pricing at higher quantities in addition to first article inspection (FAI) reporting, material certifications, and additional finishing options like anodizing and chromate plating.

How Does CNC Milling Work?
CNC milling is a subtractive manufacturing process. It starts by fixturing a block of metal or plastic material inside the CNC mill. The CNC machine is programmed to rapidly mill out parts from the block of raw material. Our 3- and 5-axis CNC machines are equipped with various toolsets to maximize efficiency and production speed.

Machined plastic parts are left as-milled, which typically means they show visible tool marks. Some metal parts allow more finishing choices like anodizing and chromate plating. When the run is complete and your required surface finish is applied, parts are boxed and shipped shortly thereafter.

CNC Turning

Our CNC turning process produces custom prototypes and end-use production parts in as fast as 4 days.

CNC turning process

What is CNC Turning?
CNC turning is a subtractive manufacturing process that rotates a metal rod while a cutting tool is held against the stock to remove material and create final parts.

Our CNC lathes are also equipped with live tooling that can machine flat features and holes into the workpiece. Outside diameter (OD) and inside diameter (ID) threading is also available.

Turned parts can then be left as-machined, with visible tool marks, or bead blasted. When the run is complete, parts are inspected, boxed and shipped shortly thereafter.

Material
Metal	Aluminum	Aluminum 5052 Aluminum 6061-T6
	Aluminum	Aluminum 6063 Aluminum 7075
	Stainless steel	SUS303,SUS304,SS316,SS316L
	Stainless steel	718H
	Steel	12L14, 4140, 1018,1045, 4130, 4142,
	Steel	O1, D2 tool steel, A36 1008 , Alloy42
	Brass	260, C360,H59,H60,H62,H63,H65,H68,H70
	Copper
	Bronze	C932
Plastic	Carbon fiber
	Acetal	(Polyoxymethylene (POM)) [Delrin]
	PEEK	Polycarbonate
	Polystyrene	Polyether Ether Ketone
	Nylon
	ABS
	PVC
	Acrylic

Finish Result
As Machined	Sharp edge and burrs will be removed
Bead Blast	Smooth, matte appearance
Anodized	Corrosion-resistant finish. Parts can be anodized in different colors—clear, black, red, blue, yellow and gold etc.
Powder Coat	This is a process where powdered paint is sprayed onto a part which is then baked in an oven.
Customized
Others
Tolerance	+/-0.005mm
Lead Time	1-2 weeks for samples,3-4 weeks for mass production
Drawing Accepted	Solid Works,Pro/Engineer, AutoCAD(DXF,DWG), PDF
Payment Terms	TT/Paypal/WestUnion

Q:How long is your delivery time?
A:4-7workdays for sample,7-25 workdays for mass production.
Q:What are your quoting elements?
A:The CAD drawing with tolerance, material, surface treatment and quantity .
Q:Do you provide samples ? Is it free or charged ?
A:Yes, we can offer the samples. Will charge sample cost, and it will be returned once the mass production order is placed.
Q:How can you ensure the quality?
A:We have QC department to control the quality from the FA to final package.
Q:If you make poor quality goods,will you refund our fund?
A:We manufacture until your satisfied.
